• Part Number: 40285 40222 40269

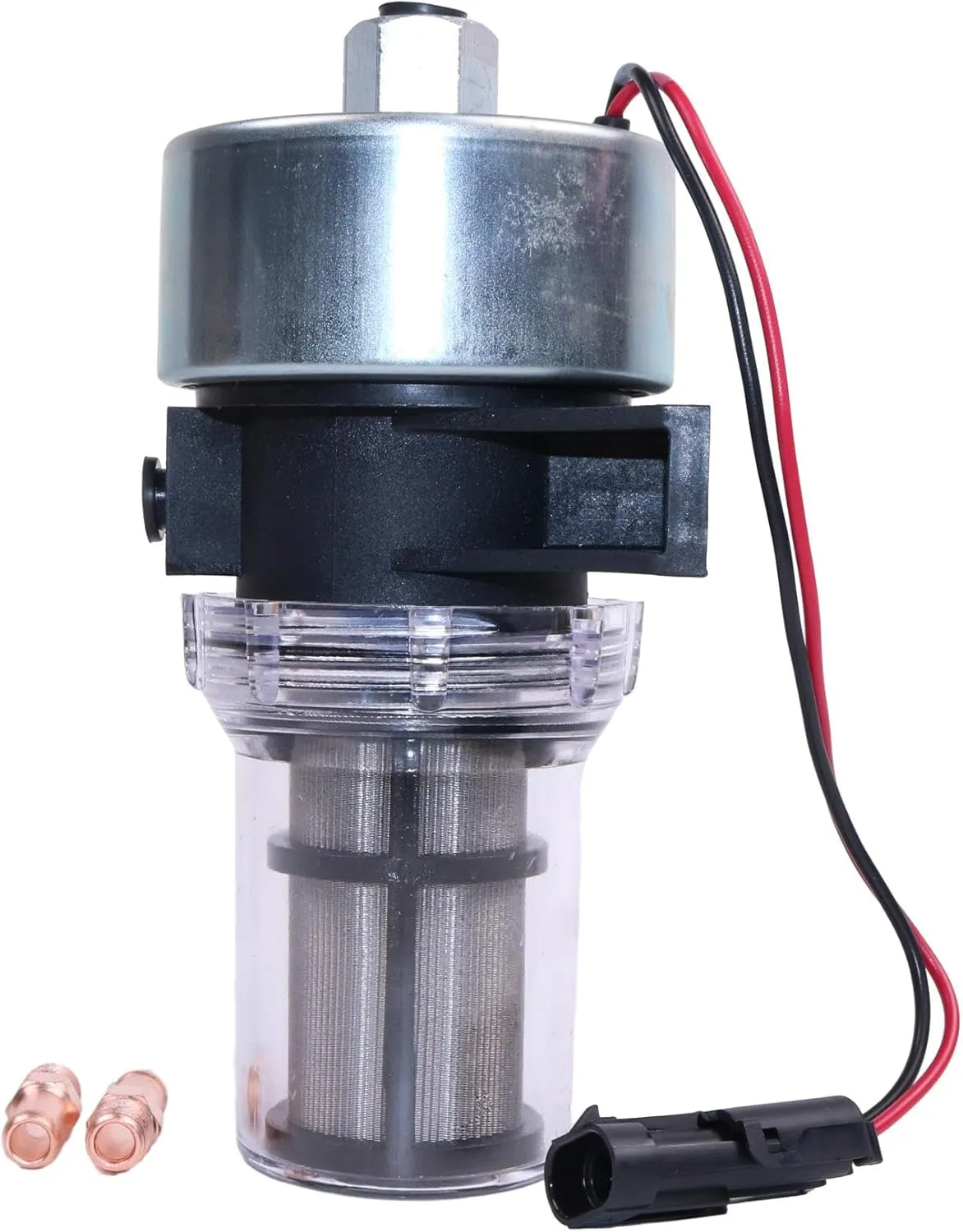

• Application Models: Compatible with Facet 40285 12V 1/8NPT 4-7PSI Dura-Lift Fuel Pump
• Voltage: 12; Earth: Neg; Pressure (Psi): 4.0-7.0; Flow (US Gallons): 33; Dry Prime Height In Mtrs: 3; Thread Size: 1/8th NPTF; Filter Micron: 80
• Loom Connector Block: Packard; Check Valve: Yes; Average Run Time or MTBF: 10000 hrs; Height (mm): 180; Width (mm): 82
• Features: The very high vertical lift capability makes them ideal for feeding a high-pressure pump when the tank is located more than two to three feet below the main pump. This particular pump has a minimum dry lift capability of 120 inches. It can deliver up to 33 gallons per hour (free flow) or 4-7 PSI (no flow). A typical application might flow 20 GPH at 3 PSI. Pump measures 8" tall overall x 3 1/4" OD (main body). A 2-bolt mounting flange is molded into the black nylon body. The large-capacity 80 micron screen intake filter is easily removed for cleaning.
